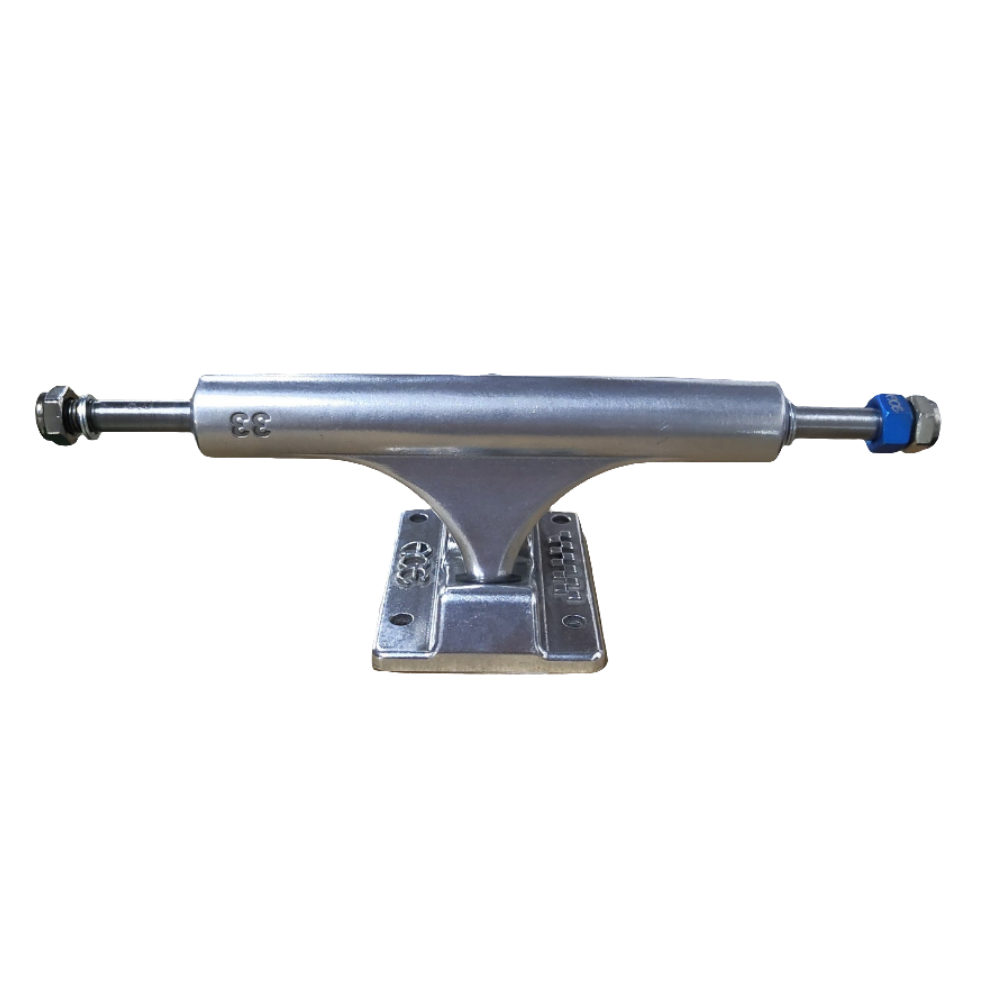

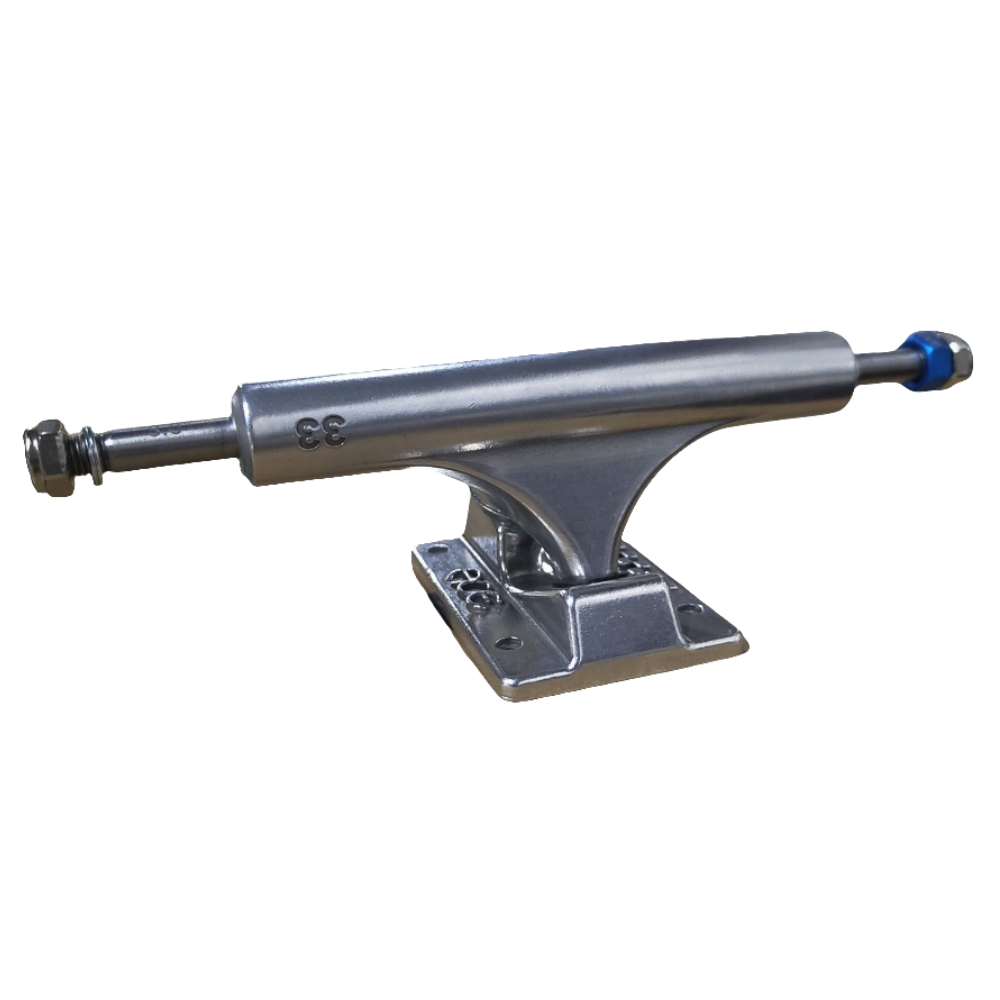

Ace AF1 LOW Hollow Skateboard Truck (Polished)

Ace AF1 LOW Hollow Skateboard Truck (Polished)

$36.95 USD
$36.95 USD
Sale Sold out
Shipping calculated at checkout.
Size

Price is for 1 truck, add 2 to the cart for a set of trucks (2 trucks)

The ACE AF1 LOW features HOLLOW Axles and Kingpins for a lightweight, lower profile AF1. Carefully manufactured using our proprietary casting process, the AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.

 • Truck height: 1.93" (49mm) which is 4mm lower than the standards

Baseplate Style
  • Standard

Strongest Cast Truck Ever Made
  • All-new proprietary process
  • Strength at a molecular level
Faced Hangers
  • Machined to perfection so the bearings sit flush
Laser Etched Sizing
  • No more guessing sizes
Bonus Re-Threading Die
  • Keep it on your key chain to fix a friend's axles on the fly
Re-Threading Axle Nuts
  • No more stripped axles
  • *Patent Pending Technology

Upgraded Pivot Cups
  • Hand-poured 96a urethane
  • Maximum durability
Improved Suspension
  •  Refined suspension for a cleaner turn.
  • Top Bushing: 10mm tall | 91a hardness
  • Bottom Bushing: Bottom 12mm tall | 86a hardness
Upgraded Axles
  • SAE 4140 Alloy Steel Axles
  • Non-slip, don't trip
Material Upgrade
  • Higher grade aluminum
  • True T6 heat treatment
Refined Baseplate
  • Improved strength

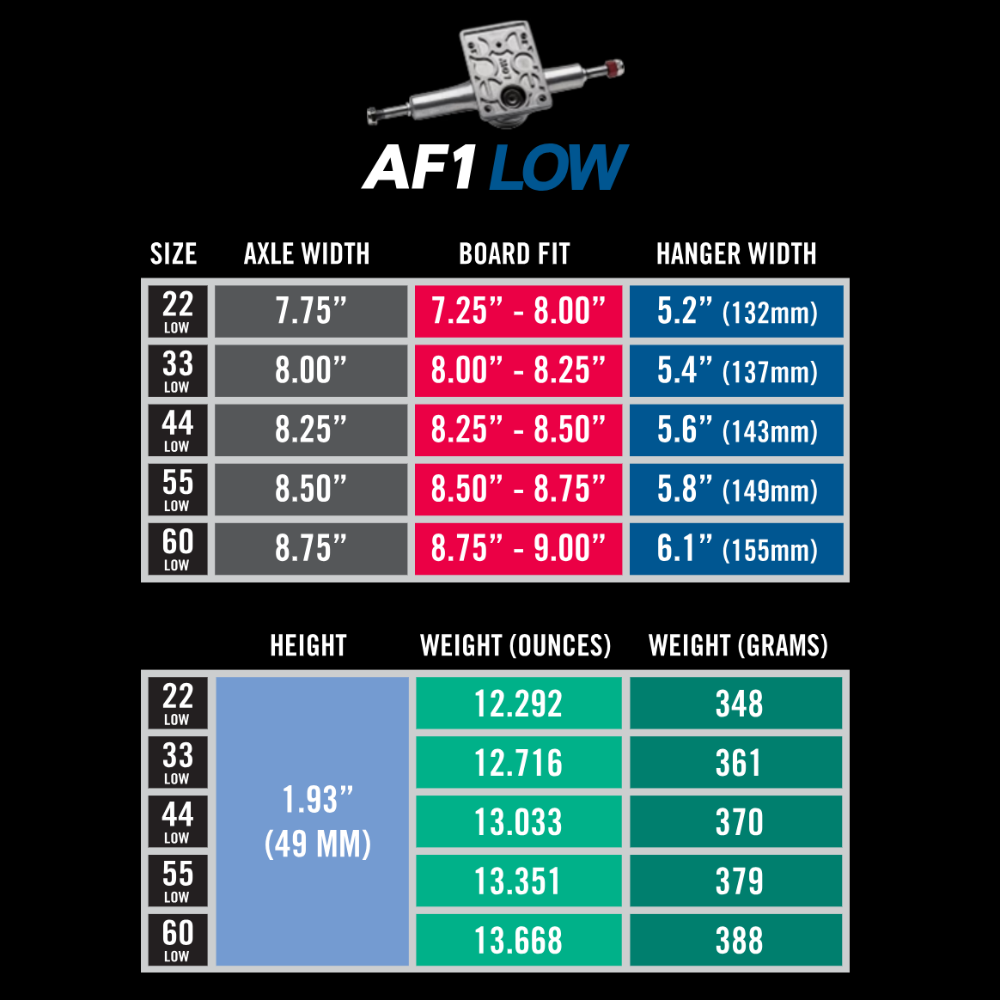

SPECS

SIZE

7.75 AXLE

22

8.0 AXLE

33

8.25 AXLE

44

8.5 AXLE

55

8.75 AXLE

60
HANGER (MM): 132 137 143 149 155
BOARD RANGE (IN): 7.25 - 8.0 8.0 - 8.25 8.25 - 8.5 8.25 - 8.75 8.75-9.00
HEIGHT (MM): 49 49 49 49 49
WEIGHT (G): 348 361 370 379 388
